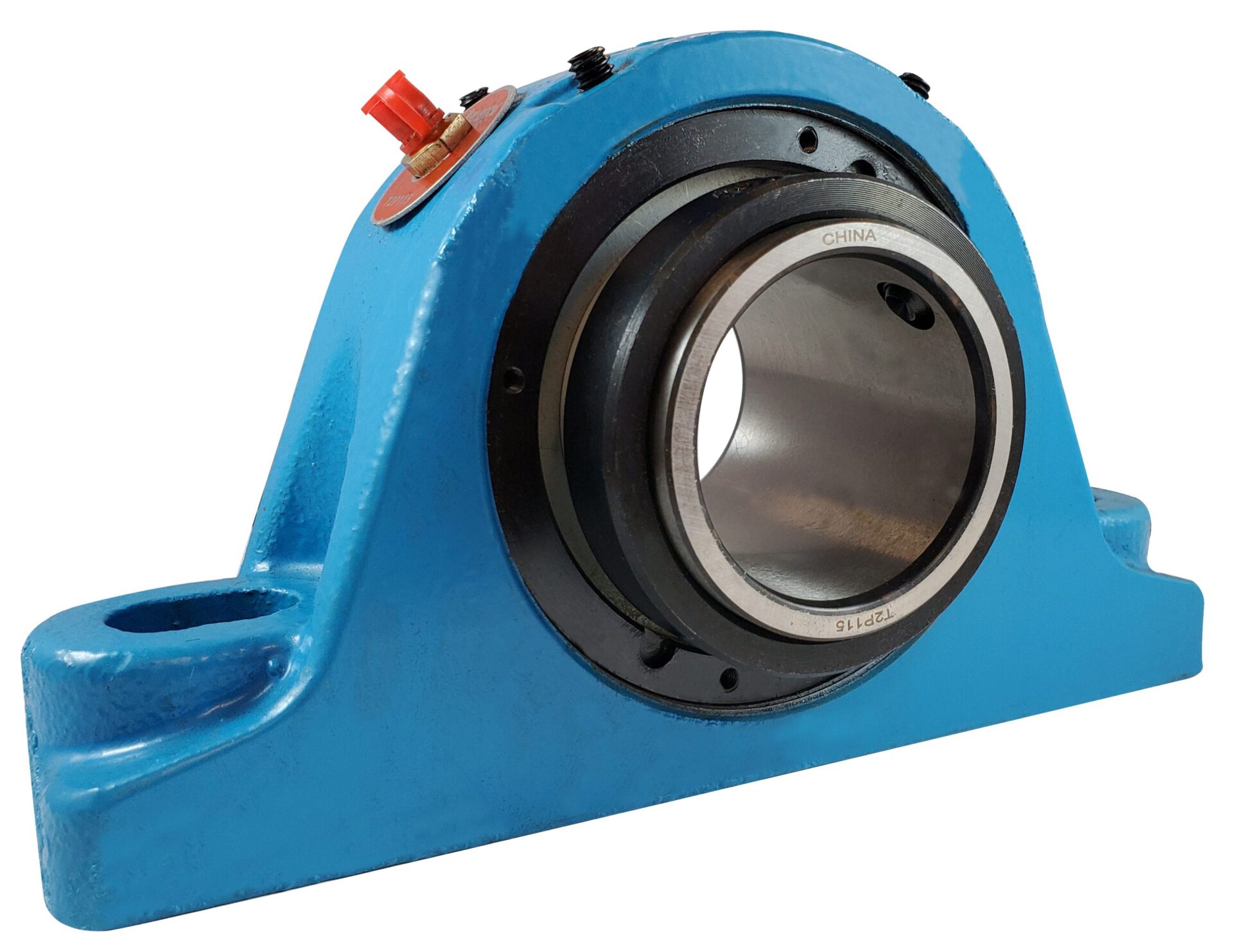

- Steel housing
- Powder coated housing (other coatings available)
- Field convertible from non-expansion to expansion (vice versa)
- Bearing insert pressed steel retainers
- Bearing rings & roller 52100 bearing steel
- Ulti-plex synthetic grease
- Teflon labyrinth seal
- Concentric locking collar
- Size range: 1-15/16” – 4-15/16”
- Bore sizes over 4” come with a double collar
- Housing dimensions match Type-E units
- Housings machined at each end for easier installation
- Interchangeable with most major brands
- High load capacity
- Handles misalignment up to ±1.5 degrees
- Purge relief valve
- Zerk fitting
[/tab]
[tab title=”Applications”]
- Metal mills
- Aggregate & cement
- Mining
- Sawmills & forestry
- Pulp & paper
- Material conveying
- Commercial & industrial building products
- Waste management & waste water treatment
- Off-highway & construction equipment
- Cranes, lifts & hoists
[/tab]
[tab title=”Drawing”]
T2P115 Series PDF
T2P203 Series PDF
T2P207 Series PDF
T2P215 Series PDF
T2P307 Series PDF
[/tab]
[tab title=”Information Download”]
RBIBearing_Mounted Spherical Units PDF
[/tab]
[/tabs]
[/column_half_last]
| wdt_ID | RBI Bearing Part No. | Bore Size | A | B | E (min) | E (max) | F | G | H | J (Bolt size) | L1 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | T2P115 | 1.938 | 2.250 | 4.50 | 5.94 | 6.56 | 8.13 | 2.24 | 1.22 | 5/8 | 3.00 |
| 2 | T2P203 | 2.188 | 2.500 | 5.00 | 6.50 | 7.06 | 8.87 | 2.36 | 1.22 | 5/8 | 3.18 |
| 3 | T2P207 | 2.437 | 2.750 | 5.50 | 6.81 | 7.44 | 9.25 | 2.80 | 1.38 | 5/8 | 3.52 |
| 4 | T2P215 | 2.938 | 3.250 | 6.37 | 7.72 | 8.43 | 10.44 | 2.92 | 1.38 | 3/4 | 3.84 |
| 5 | T2P307 | 3.438 | 3.750 | 7.50 | 9.25 | 10.75 | 13 | 3.50 | 1.85 | 7/8 | 4.34 |
